R-390/URR Radio Receiver
The R-390 is a double / triple conversion superheterodine receiver, designed by
Collins and manufactured from 1950 to 1954. It uses a mechanical digital dial, has a
PTO and supports AM and CW modes. It has 32 bands of 1MHz bandwidth each,
covering from 0.5 to 32MHz. Its IFs are 9 to 18Mhz (only for 0.5 to 8MHz), 3 to
2Mhz and 455KHz. It has 32 tubes plus one semi-diode. Filtering is made with
crystal and cascaded L/C filters at 455KHz.
TM 11-5820-357-20
Organizational Maintainence Manual Radio Receiver R390/URR 23 March 1961 NOTE: TM is broken down to 3 Large (2megs to 1.5megs) Adobe Acrobat 4.0 files (.pdf)

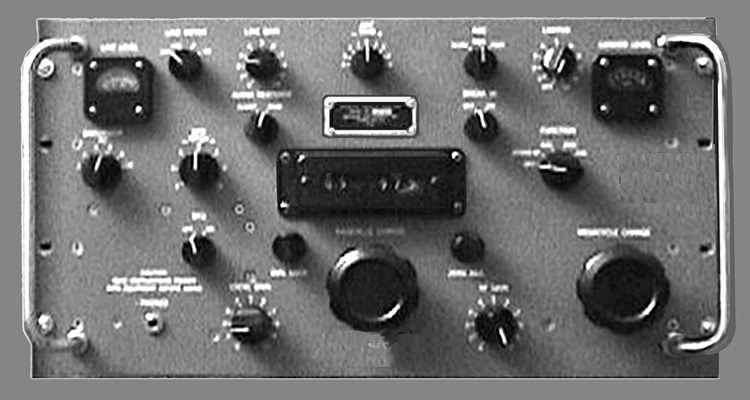

The R-390A was developed in 1951 by Collins as a reduced cost R-390 and was by
far more popular than its predecessor. It is also a double / triple conversion
superheterodine receiver and covers the same frequencies (from 0.5 to 32MHz). It
also uses a mechanical digital dial, has a PTO and supports AM and CW
modes.The IFs are 17.5 to 25MHz (only for 0.5 to 8MHz), 2.5 to 2MHz (0.5 to
1MHz band only), 3 to 2MHz and 455KHz. It has one crystal (for 0.1 and 1KHz
bandwidths) and four mechanical (for 2, 4, 8 and 16KHz bandwidths) filters at
455KHz IF. It has 26 tubes.
